CSF Toyota GR Supra / BMW G20 / G29 40i Transmission Oil Cooler

CSF is the world leader in BMW transmission cooling technology. From its experience starting with the transmission in the BMW F8X M3, M4, and M2 Comp, CSF applied several different features exclusive to its manufacturing technologies. An innovative dual-core design allows for a 240% increase in core volume, resulting in maximum performance and maintaining optimal shifting during extreme racing conditions " from road racing to the drag strip. During R&D, CSF consulted with a network of partners, including leading time attack teams, tuners, and more. Often, the feedback was gearbox fatigue and sluggish shifting with transmission temperatures overheating under prolonged or hard use. CSF has the answer with our industry-leading transmission cooler for the A90/91 Supra and BMW G-Series' ZF 8HP transmission. Installed in the world's fastest A90 Supra " Titan Motorsports Drag Race Supra (first and only Supra to reach the 8s in the 1/4 mile).

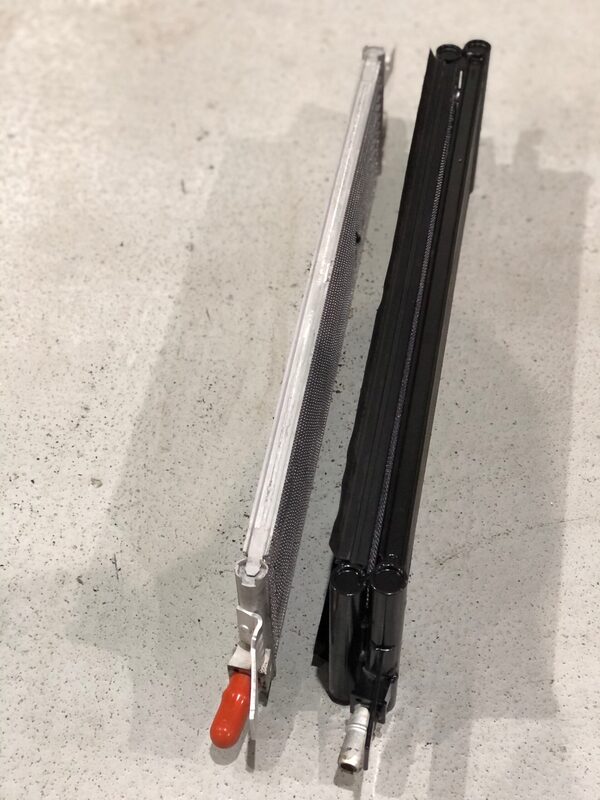

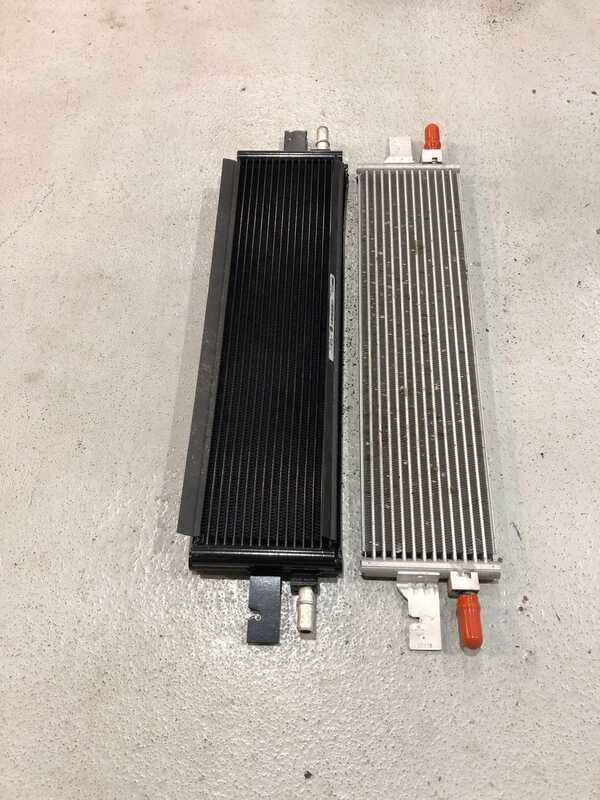

Innovative Dual-Core Design (Industry Exclusive) vs. OEM Single Core
240% Increase in Core Volume
130% Increase in Fluid Capacity Compared to OEM (CSF 550ml vs. OEM ~240ml)
Two 16mm Stacked Cores = 32mm Core Width (44mm Overall Width) vs. OEM 15mm Core Width
Rear Cooler: 15 Rows vs. OEM 12 Rows
Front Cooler: Additional 12 Rows
5.4mm Tall Multi-Louvered Fin vs. OEM 7mm
Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
129mm Overall Height vs. OEM 125mm Allows for Maximum Performance Without Increasing Overall Surface Area or Blocking Airflow to Rest of Cooling System
Utilises OEM Top/Bottom Rubber Seals for Optimal Airflow
OEM Style "Quick Connect" Inlet/Outlet Connections
Drop-in Fit Requires No Modifications to Install
Can be Installed With CSF's High-Performance Heat Exchanger (CSF #8154) or with the OEM Cooling System
2-Year Limited Warranty
Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning
Fits:
2019+ Toyota GR Supra (A90/A91)
2018+ BMW G29 Z4 M40i
2018+ BMW G20 3-Series (330e, M340i, M340iX)
2018+ BMW G21 M340iX Touring
OEM #:
32910-WAA02 (Toyota)
17219494828 (BMW)

CSF's industry-exclusive dual-core design allows for maximum performance and the largest core volume oil capacity without effecting airflow into the rest of the cooling system. No more temperature overheating or expansion tank overflow during racing conditions.

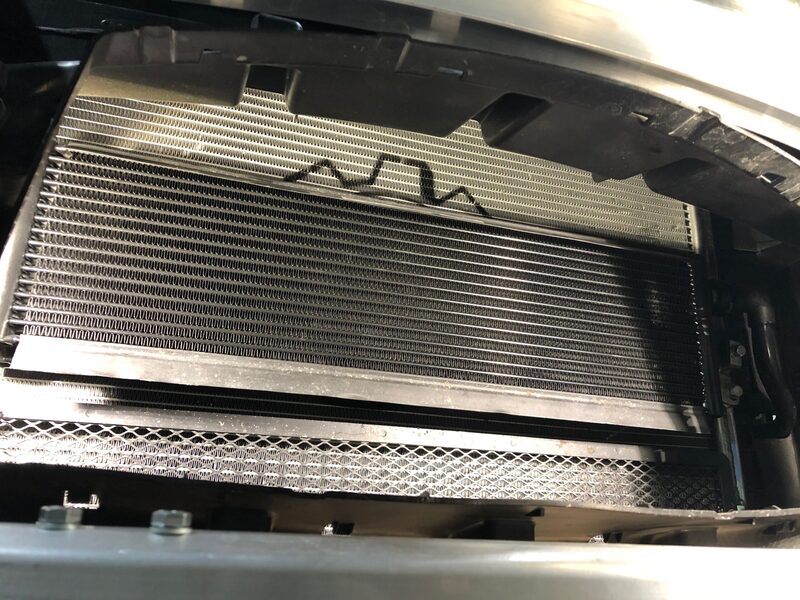

CSF's High-Performance Transmission Oil Cooler installed. Designed as a drop-in fit to work with both the OEM Front Mount Heat Exchanger as well as CSF's High-Performance version (CSF #8154) with included rock guard. Also designed to utilise the OEM top/bottom rubber seals for optimal airflow into the cooling system.
